The PRISM Family

Model Form Factor Depth Interface SDI Inputs Capability
(4 x 12G SDI)*
IP Inputs Capability
(2 x 10G/25G)*
Eye Measurement capability
(12G SDI)*
Format Support
(SD,HD,3G,4K,8K)*
Power Input
MPI2-25 3RU,Half-Rack 10.5” 1920 x 1080
9” Touchscreen x 1
Standard Standard Option Standard AC

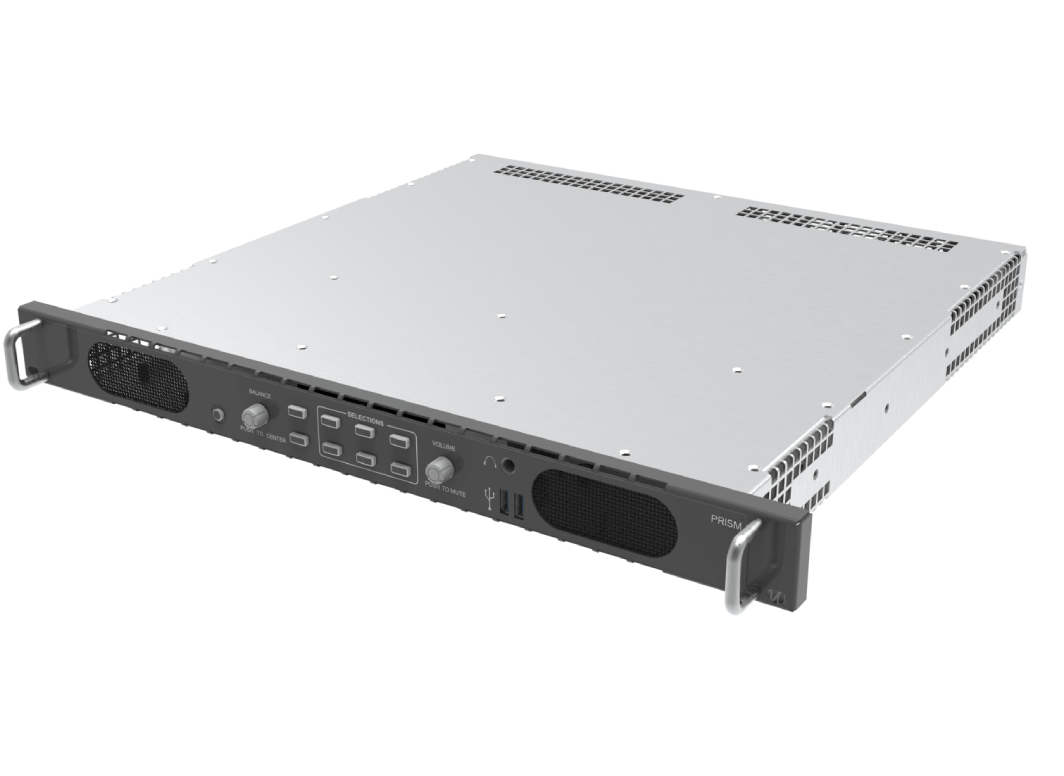

MPX2-25 1RU, Full-rack 16.5” External Monitor Standard Standard Option Standard AC
MPS-100 3RU, Half-rack 5” 1920 x 1080
9” Touchscreen x 1
Standard X X Standard AC/DC
MPS-200 3RU, Half-rack 5” 1920 x 1080
9” Touchscreen x 1
Standard Standard X Standard AC/DC
MPS-300 3RU, Half-rack 5” 1920 x 1080
9” Touchscreen x 1
Standard Standard Standard Standard AC/DC
MPD-100 3RU, Full-rack 5” 1920 x 1080
9” Touchscreen x 2
Standard X X Standard AC
MPD-200 3RU, Full-rack 5” 1920 x 1080
9” Touchscreen x 2
Standard Standard X Standard AC
MPD-300 3RU, Full-rack 5” 1920 x 1080
9” Touchscreen x 1
Standard Standard Standard Standard AC

* May require options to enable higher resolutions and bandwidths

Video Format Support

Supported SDI video formats

Link Format Sample Structure Bits Frame/field rate Audio Option
SD-SDI 525i 4:2:2 YCbCr 10b 59.94i 16ch Standard
625i 4:2:2 YCbCr 10b 50i 16ch Standard
HD-SDI 1280x720 4:2:2 YCbCr 10b 23.98/24/25/29.97/30/50/59.94/60p 16ch Standard
1920x1080 4:2:2 YCbCr 10b 50/59.94/60i, 23.98/24/25/29.97/30p, and psF 16ch Standard
2048x1080 4:2:2 YCbCr 10b 29.97/30p, and psF 8ch Standard
2048x1080 4:2:2 YCbCr 10b 23.98/24/25p, and psF 16ch Standard
3G SDI Level A 1920x1080 4:2:2 YCbCr 10b 50/59.94/60p 16ch Standard
2048x1080 4:2:2 YCbCr 10b 47.95/48/50/59.94/60p 16ch Standard
1920x1080 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch PROD*
2048x1080 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch PROD*
3G SDI Level B 1920x1080 4:2:2 YCbCr 10b 50/59.94/60p 16ch Standard
2048x1080 4:2:2 YCbCr 10b 59.94/60p 8ch Standard
2048x1080 4:2:2 YCbCr 10b 47.95/48/50p 16ch Standard
1920x1080 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch PROD*
2048x1080 4:4:4 RGB 10/12b 29.97/30p 8ch PROD*
2048x1080 4:4:4 RGB 10/12b 23.98/24/25p 16ch PROD*
Quad Link HD-SDI Square Division 3840x2160 4:2:2 YCbCr 10b 23.98/24/25/29.97/30p, and psF 16ch from Link A FMT-4K*
4096x2160 4:2:2 YCbCr 10b 23.98/24/25p, and psF 16ch from Link A FMT-4K*
4096x2160 4:2:2 YCbCr 10b 29.97/30p, and psF 8ch from Link A FMT-4K*
Quad Link 3G-SDI Level A, Square Division 3840x2160 4:2:2 YCbCr 10b 50/59.94/60p 16ch from Link A FMT-4K*
4096x2160 4:2:2 YCbCr 10b 47.95/48/50/59.94/60p 8ch from Link A FMT-4K*
3840x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
4096x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
Quad Link 3G-SDI Level B, Square Division 3840x2160 4:2:2 YCbCr 10b 50/59.94/60p 16ch from Link A FMT-4K*
4096x2160 4:2:2 YCbCr 10b 47.95/48/50/59.94/60p 8ch from Link A FMT-4K*
3840x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
4096x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
Quad Link 3G-SDI Level A, Two Sample Interleave 3840x2160 4:2:2 YCbCr 10b 50/59.94/60p 16ch from Link A FMT-4K*
4096x2160 4:2:2 YCbCr 10b 47.95/48/50/59.94/60p 8ch from Link A FMT-4K*
3840x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
4096x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
Quad Link 3G-SDI Level B, Two Sample Interleave 3840x2160 4:2:2 YCbCr 10b 50/59.94/60p 16ch from Link A FMT-4K*
4096x2160 4:2:2 YCbCr 10b 47.95/48/50/59.94/60p 8ch from Link A FMT-4K*
3840x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
4096x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch from Link A FMT-4K* and PROD*
6G-SDI 3840x2160 4:2:2 YCbCr 10b 23.98/24/25/29.97/30p 16ch FMT-4K*
4096x2160 4:2:2 YCbCr 10b 23.98/24/25p 16ch FMT-4K*
4096x2160 4:2:2 YCbCr 10b 29.97/30p 8ch FMT-4K*
12G-SDI 3840x2160 4:2:2 YCbCr 10b 50/59.94/60p 16ch FMT-4K*
4096x2160 4:2:2 YCbCr 10b 47.95/48/50/59.94/60p 16ch FMT-4K*
3840x2160 4:4:4 RGB 10/12b 23.98/24/25/29.97/30p 16ch FMT-4K* and PROD*
4096x2160 4:4:4 RGB 10/12b 23.98/24/25p 16ch FMT-4K* and PROD*
4096x2160 4:4:4 RGB 10/12b 29.97/30p 8ch FMT-4K* and PROD*
Quad Link 12G-SDI, Two Sample Interleave 7680x4320 4:2:2 YCbCr 10b 50/59.94/60p 32ch from Link A/B FMT-8K*

* When ordering MPI2-25 and MPX2-25 add a prefix MP2- for the specific option for example FMT-4K would be MP2-FMT-4K. When ordering MPS Series or MPD series add a prefix MPSDP- for the specific option for example FMT-4K would be MPSDP-FMT-4K.

Supported video formats in SMPTE 2022-6 Streams

Link Format Sample Structure Bits Frame/field rate Option
SD-SDI 525i 4:2:2 YCbCr 10b 59.94i Standard
625i 4:2:2 YCbCr 10b 50i Standard
HD-SDI 1920x1080 4:2:2 YCbCr 10b 50/59.94/60i, 23.98/24/25/29.97/30p, and psF Standard
1280x720 4:2:2 YCbCr 10b 23.98/24/25/29.97/30/50/59.94/60p Standard
3G SDI Level A
1920x1080 4:2:2 YCbCr 10b 50/59.94/60p Standard
3G SDI Level B
1920x1080 4:2:2 YCbCr 10b 50/59.94/60p Standard

Not available for MPS-100 and MPD-100

Supported ST2110-20 video formats

Link Format Sample Structure Bits Frame/field rate Option
ST2110-20 525i 4:2:2 YCbCr 10b 59.94i Standard
625i 4:2:2 YCbCr 10b 50i Standard
1280x720 4:2:2 YCbCr 10b 23.98/24/25/29.97/30p Standard
1280x720 4:2:2 YCbCr 10b 50/59.94/60p Standard
1920x1080 4:2:2 YCbCr 10b 23.98/24/25/29.97/30p, and psF, 50/59.94/60i, 50/59.94/60p Standard
2048x1080 4:2:2 YCbCr 10b 23.98/24/25/29.97/30/50/59.94/60p Standard
3840x2160 4:2:2 YCbCr 10b 50p FMT-4K*
3840x2160 4:2:2 YCbCr 10b 59.94/60p FMT-4K* and *-25GE
4096x2160 4:2:2 YCbCr 10b 23.98/24/25/29.97/30/50/59.94/60p FMT-4K*
4096x2160 4:2:2 YCbCr 10b 59.94/60p FMT-4K* and *-25GE

Not available for MPS-100 and MPD-100

* When ordering MPI2-25 and MPX2-25 add a prefix MP2- for the specific option for example FMT-4K would be MP2-FMT-4K. When ordering MPS Series or MPD series add a prefix MPSDP- for the specific option for example FMT-4K would be MPSDP-FMT-4K.

SMPTE 2110-30/31 Streams

Conformance level Description
Conformance level A Reception of 48 kHz streams with from 1 to 8 channels at packet times of 1 ms
Conformance level B Reception of 48kHz streams with 1 to 8 channels at packet times of 1 ms or 1 to 8 channels at packet times of 125 µs

Reception of 48kHz streams with 16 channels at packet times of 125 µs

Not available for MPS-100 and MPD-100

PRISM instruments with 25GE module have up to four ST2110 30 streams of reception with up to 16 audio channels total. One of four streams can be replaced with ST2110-31.

SMPTE 2110-40 Stream

PRISM supports one ST2110-40 stream with multiple ANC packets.

Not available for MPS-100 and MPD-100

Connectivity and Instrument Dimensions

MPI2-25 Connectivity

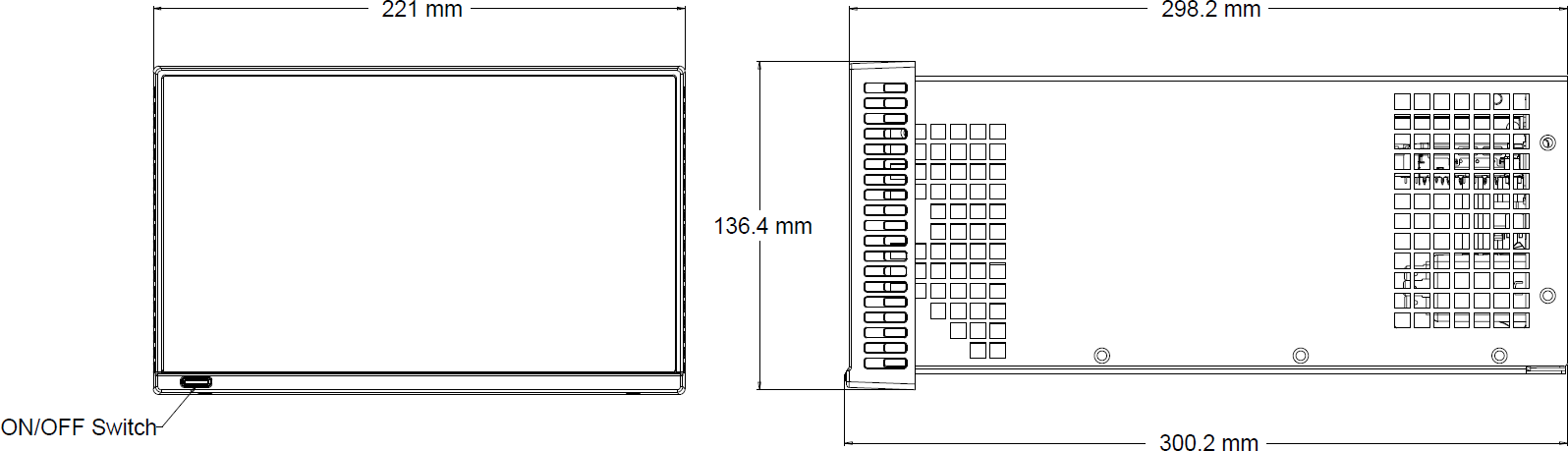

MPI2-25 Physical Data

Dimensions
Height (includes Bezel) 13.64 cm ( 5.37 in.)
Width (includes Bezel) 22.10 cm (8.70 in.)
Depth 29.82 cm (11.74 in.)
Weight 3.40 Kg (7.45 lbs)

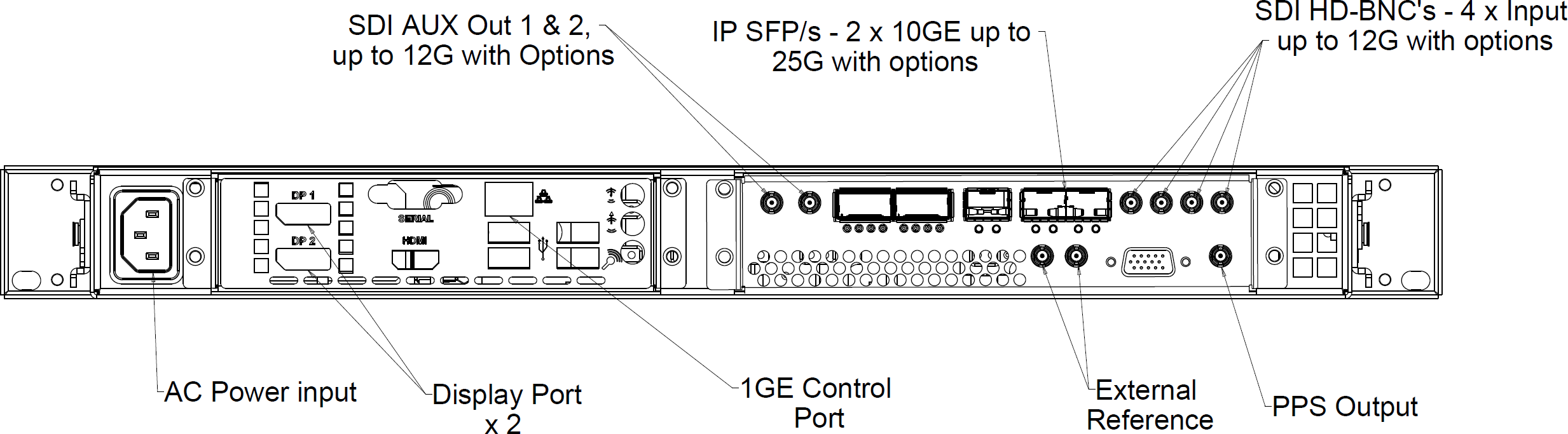

MPX2-25 Connectivity

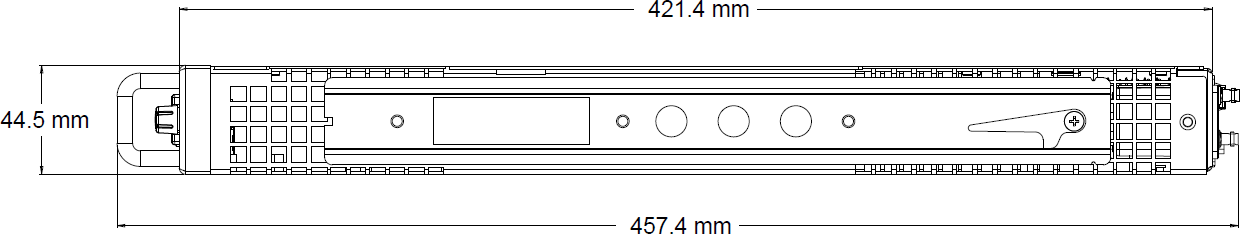

MPX2-25 Physical Data

Dimensions
Height 04.45 cm (1.75 in.)
Width 48.26 cm (19.00 in.)
Depth 42.14 cm (16.59 in.)
Weight 3.90 Kg (8.7 lbs.)

MPS-100 Connectivity

MPS-100 Physical Data

Dimensions
Height 13.30 cm (5.24 in.)
Width 22.00 cm (8.66 in.)
Depth (inc. Connectors) 13.07 cm (5.15 in.)
Weight 2.77 Kg (6.1 lbs.)

MPS-200/300 Connectivity

MPS-200/300 Physical Data

Dimensions
Height 13.30 cm (5.24 in.)
Width 22.00 cm (8.66 in.)
Depth (inc. Connectors) 12.46 cm (4.91 in.)
Weight 2.77 Kg (6.1 lbs.)

MPD-100 Connectivity

MPD-100 Physical Data

Dimensions
Height 13.30 cm (5.24 in.)
Width 44.50 cm (17.52 in.)
Depth (inc. Connectors) 13.07cm (5.15 in.)
Weight 3.95 Kg (8.7 lbs.)

MPD-200/300 Connectivity

MPD-200/300 Physical Data

Dimensions
Height 13.30 cm (5.24 in.)
Width 44.50 cm (17.52 in.)
Depth (inc. Connectors) 12.46cm (4.91 in.)
Weight 3.95 Kg (8.7 lbs.)

Power Characteristics

MPI2-25

Power Consumption
Typical 100 W
Maximum 180 W
Voltage Range 100 to 240 VAC +/- 10%, 50/60 Hz

MPX2-25

Power Consumption
Typical 100 W
Maximum 180 W
Voltage Range 100 to 240 VAC +/- 10%, 50/60 Hz

MPS-100/200/300

Power Consumption
Typical 95 W/100 W/105 W
Maximum 160 W
Voltage Range 100 to 240 VAC +/- 10%, 50/60 Hz

MPD-100/200/300

Power Consumption
Typical 105 W/110 W/115 W
Maximum 160 W
Voltage Range 100 to 240 VAC +/- 10%, 50/60 Hz

AUX SDI Output Characteristics (Generator Mode)

Output Level
800 mV +/- 10% into 75 Ω Load

Weight and Packaging Dimensions

MPI2-25 Packaging Data

Dimensions
Height 41.91 cm (16.50 in.)
Width 45.09 cm (17.75 in.)
Depth 50.17 cm (19.75 in.)
Weight 7.00 Kg (15.43 lbs)

MPX2-25 Packaging Data

Dimensions
Height 29.21 cm (11.50 in.)
Width 64.14 cm (25.25 in.)
Depth 73.03 cm (28.75 in.)
Weight 9.30 Kg (20.50 lbs)

MPS-100/200/300 Packaging Data

Dimensions
Height 30.5 cm (12.0 in.)
Width 38.1 cm (15.0 in.)
Depth 27.9 cm (11.0 in.)
Weight 4.2 Kg (9.2 lbs)

Subject to change

MPD-100/200/300 Packaging Data

Dimensions
Height 30.5 cm (12.0 in.)
Width 61.0 cm (24.0 in.)
Depth 27.9 cm (11.0 in.)
Weight 6.0 Kg (13.2 lbs)

Subject to change

Ordering Information - Options and Applications

Base Model Selection

Model Notes
MPI2-25 PRISM, MPI2-25; 3RU half rack; 4 SDI Inputs; 2 SFP+ for 10GE. 25GE support requires MP2 25GE license.
MPX2-25 PRISM, MPX2-25; 1RU full rack; 4 SDI Inputs; 2 SFP+ for 10GE. 25GE support requires MP2 25GE license.
MPS-100 PRISM, MPS-100; 3RU half rack, short depth, SDI Waveform Monitor base unit with integrated touchscreen
MPS-200 PRISM, MPS-200; 3RU half rack, short depth, SDI and IP Waveform Monitor base unit with integrated touchscreen
MPS-300 PRISM, MPS-300; 3RU half rack, short depth, SDI and IP Waveform Monitor with SDI EYE base unit with integrated touchscreen
MPD-100 PRISM, MPD-100; 3RU full rack, short depth, SDI Waveform Monitor base unit with dual integrated touchscreens
MPD-200 PRISM, MPD-200; 3RU full rack, short depth, SDI and IP Waveform Monitor base unit with dual integrated touchscreens
MPD-300 PRISM, MPD-300; 3RU full rack, short depth, SDI and IP Waveform Monitor with SDI EYE base unit with dual integrated touchscreens

Application Summary

Notes Applications
Standard Applications (All Models)
Optional Applications (All Models)
Optional Applications for MPS/MPD-200/300, MPI2-25 and MPX2-25
Physical Layer Applications. Standard on-MPS/MPD 300. Optional on MPI2-25 and MPX2-25

Software Options

PRISM Options Description Applications Enabled
AUD* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add Software license for enhanced Audio feature sets: includes Phase, Session, Correlation, Loudness, AES Channel Status, Loudness, Dolby E and D metadata display
SRND* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add software license for Audio Surround Sound Displays (Must have Option AUD installed)
DLBY* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add Software license for Dolby E and Dolby D decoding.
ENG-QC** License; For PRISM, MPI2, MPX2, MPS and MPD Models add this software license to enable the Engineering and QC feature sets. These include: Datalist, Closed Captions (ARIB B-37, CEA608/CEA708) / Teletext decode (OP47/ST2031), ANC Session, AV Delay and EBU R103 Gamut monitoring.
GEN* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add Software license for SDI/IP signal generator; includes IP/SDI Generator application.
PROD* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add Software license for Production feature sets: includes Stop display, Light meter, HDR/WCG Conversion, CIE chart, False color and HDR measurement
MULTI* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add software license for multi-channel input support
EXTNDSP* License; PRISM, MPI2, MPX2, and MPS Models, Add software license for enabling extended desktop.

* Requires prefix of either MP2- or MPSDP- for ordering

** For ENG-QC option use MPSDP-ENG-QC for MPS/MPD models and MP2-ENG for MPI2/MPX2 models

IP Measurement Options

Option Description Applications Enabled
IP-MEAS* Add Software license for IP Measurement feature sets: includes IP/PTP Graph, IP/PTP Session, PIT Histogram, Timing, Stream Timing and Stream capture applications.

* Requires prefix of either MP2- or MPSDP- for ordering

Physical Layer Measurement Options

Option Description Applications Enabled
PHY* SDI Physical Layer Measurement Package (incl. automated measurement of 12G/6G/3G/HD/SDI Eye pattern parameters and jitter parameters; jitter waveform display). FMT-4K license required for 12G/6G-SDI support

* Standard on-MPS/MPD 300. Optional on MPI2-25 and MPX2-25

Speaker Options (MPX2-25 Only)

MPX2-25 Description
MPX2-25 SPKR Adds integrated stereo speaker set, no field upgrade kit is available

Format Support Options

Option Description
FMT-4K* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add Software license for 4K formats and enable 6G/12G SDI.
FMT-8K* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add Software license for 8K formats in Quad 12G SDI
25GE* License; PRISM, MPI2, MPX2, MPS and MPD Models, Add Software license for 25GE support

* Requires prefix of either MP2- or MPSDP- for ordering

Racks Mount Kits and Accessories

MPS-100/200/300 Options

Option Description
MPS-PTBL PRISM MPS model, Portable Accessory kit includes handle, feet, protective front cover, tripod mount bracket and bracket for battery mount plate (battery, battery mount plate and tripod not included)
MPS-RACK PRISM MPS model, Rack mounting kit with USB cables (not for use with MPD Models)

MPS-PTBL - Portable Accessory Kit (Instrument not incl.)

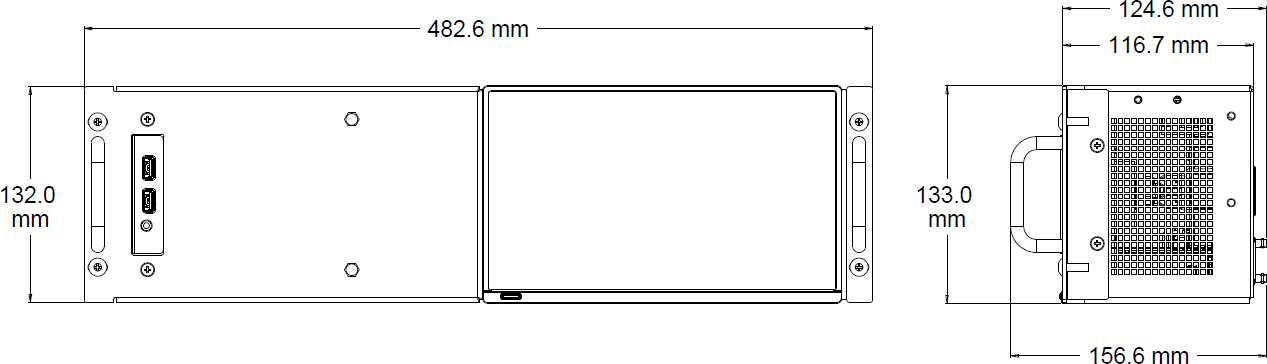

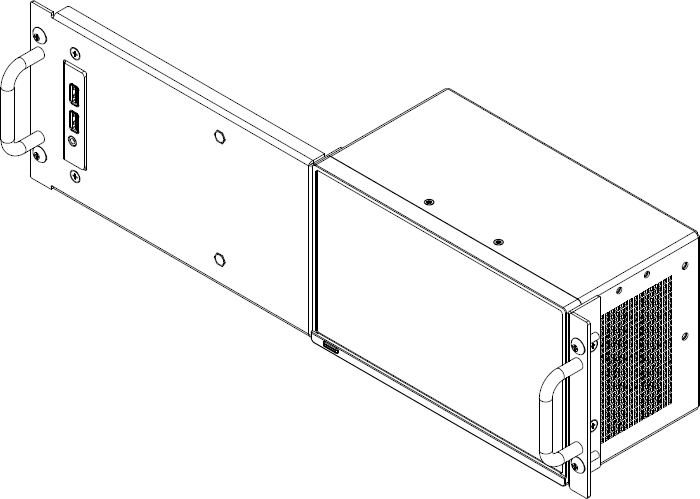

MPS-RACK - Accessories for mounting a single MPS (Instrument not incl.)

MPS-RACK - Accessories for mounting two MPS units (Instrument not incl.)

MPD-100/200/300 Rack Options

Option Description
Standard PRISM MPD model, Rack Mounting ears provided as standard with the instrument.

MPI2-25 Options

Option Description
MPI2-PTBL PRISM MPI2, Portable cabinet with handle, feet, Tile bail and protective front cover
MPI-RACK-MM 19 inch, 3RU dual rack cabinet for one MPI unit or two MPI units in a side by side installation, includes front panel USB/headphone connectors for each MPI unit
MPI-RACK-MW 19 inch, 3RU dual rack cabinet for one MPI unit or one MPI unit in a side by side installation with a WFM52x0, WFM7200, WFM8x00 instrument, includes front panel USB/headphone connectors for one MPI unit

MPI2-PTBL

MPI-RACK-MM

MPI-RACK-MW

MPX2-25 Rack Options

Option Description
MPX2-25 RACK PRISM MPX2-25, Rackmount slides and rails kit for MPX2

MPX2-25 RACK

Cable Options

Cable Options

Option Description
MP-CBL DUALDSP PRISM A cable kit for MPX2 DUALDSP, Two sets of 2 M DisplayPort male to DisplayPort male cable and 2 M USB 3.0 A male to B male cable
MP-CBL HDBNC-BNC PRISM Coaxial adapter cables from high density male BNC connector to standard female BNC connector (a set of 3 cables, 75 Ω, 0.5 M long)

Power Cord for MPS/MPD models

Model Description
PWR CORD NA S15 North America Power Cord, Straight 15A
PWR CORD NA R15 North America Power Cord, Right Angle 15A
PWR CORD NA S20 North America Power Cord, Straight 20A
PWR CORD EURO Universal EURO Power Cord
PWR CORD CHN China Power Cord
PWR CORD IN India Power Cord
PWR CORD UK United Kingdom Power Cord
PWR CORD BRZ Brazil Power Cord
PWR CORD AUS Australia Power Cord
PWR CORD CHE Switzerland Power Cord
PWR CORD JPN Japan Power Cord
PWR CORD NONE No Power Cord or AC Adapter

Power cord for MPI2-25 / MPX2-25

Model Description
A0 North America Power Cord
A1 Universal EURO
A2 United Kingdom Power Cord
A3 Australia Power Cord
A6 Japan Power Cord
A10 China Power Cord
A11 India Power Cord
A12 Brazil Power Cord
A99 No Power Cord or AC Adapter

Dual Display

MPI2 and MPX2 Dual Display Options

Option Description
MPI2-RACK-MD PRISM MPI2, 19 inch, 3RU Rack Cabinet with display and touch panel, USB/HEADPHONE connector on rack ear
MPX2-DUALDSP 19 inch, 3RU Dual display unit with touch panel, USB/Headphone connector on rack ear

MPI2-RACK-MD

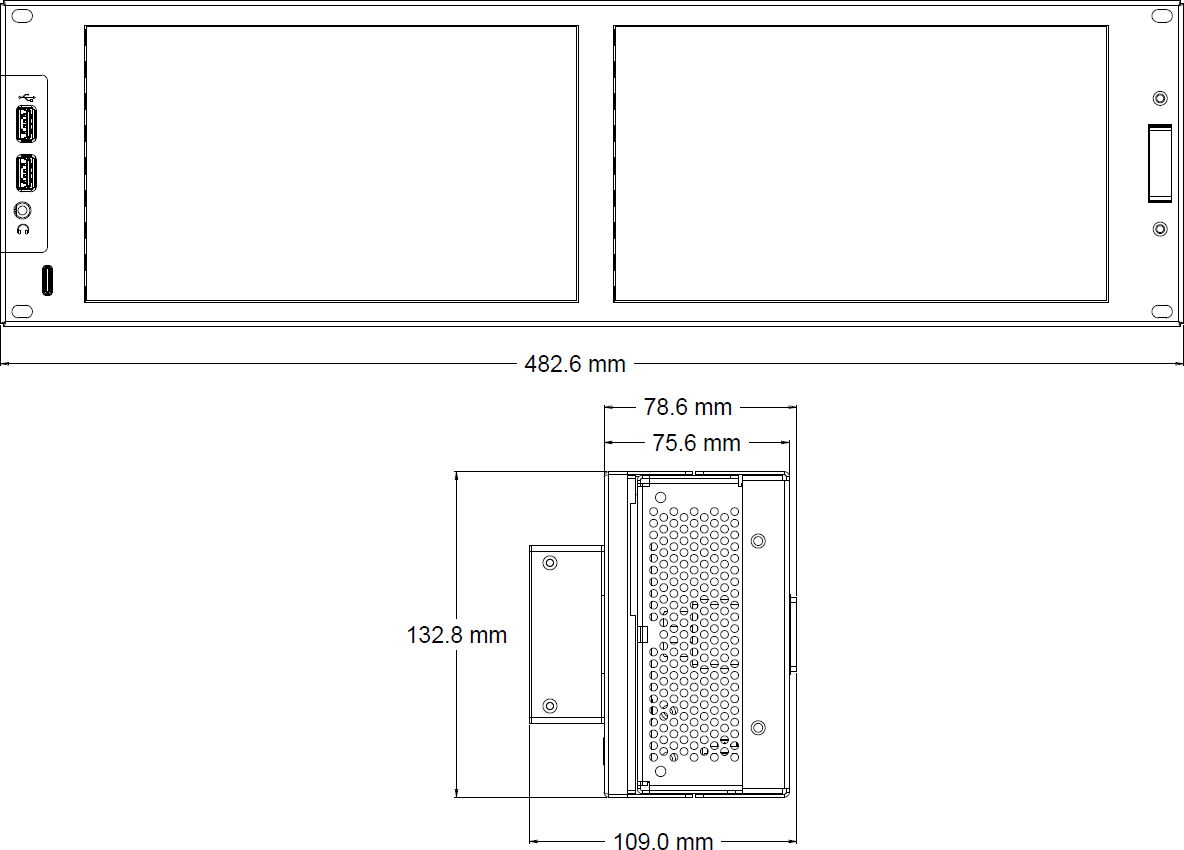

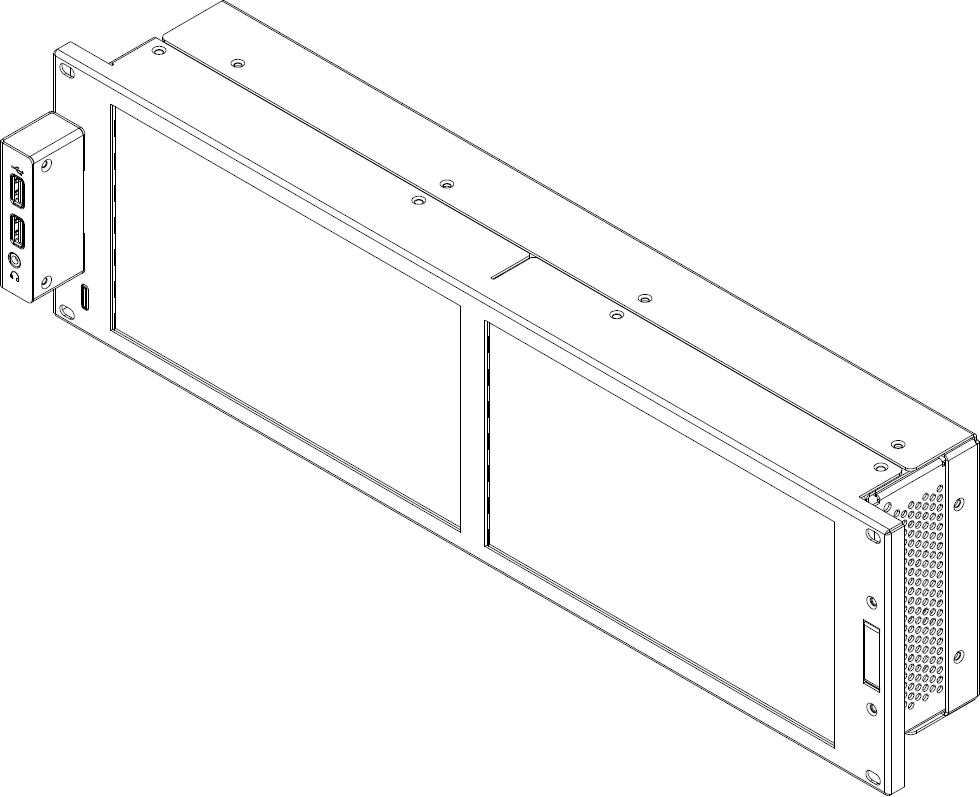

MPX2-DUALDSP

SFP Modules for IP Instruments

MPS/MPD 200/300, MPI2 25, MPX2 25

Option Description
MP-SFP 10GELR A 10G Ethernet long range 1310 nm transceiver module for SFP+ C/D socket (MPI IP STD is required)
MP-SFP 10GESR A 10G Ethernet short range 850 nm transceiver module for SFP+ C/D socket (MPI IP STD is required)
MP-SFP 25GELR PRISM A 25G Ethernet long range 1310 nm transceiver module.
MP-SFP 25GESR PRISM A 25G Ethernet short range 850 nm transceiver module.

Service, Support

MPI2-25 Model Service Options

Option Description
MPI2-25 FC3 Calibration service 3 years. Includes calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage.
MPI2-25 FC5 Calibration service 5 years. Includes calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage.
MPI2-25 FD3 Calibration Data Report 3 Years (with Option FC3)
MPI2-25 FD5 Calibration Data Report 5 Years (with Option FC5)
MPI2-25 R3 Standard Warranty Extended to 3 Years. Covers parts, labor and 2 day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free a single call starts the process
MPI2-25 R5 Standard Warranty Extended to 5 Years. Covers parts, labor and 2 day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free a single call starts the process

MPX2-25 Model Service Options

Option Description
MPX2-25 FC3 Calibration service 3 years. Includes calibration or functional verification where applicable, for recommended calibrations.Coverage includes the initial calibration plus 2 years calibration coverage.
MPX2-25 FC5 Calibration service 5 years. Includes calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage.
MPX2-25 FD3 Calibration Data Report 3 Years (with Option FC3)
MPX2-25 FD5 Calibration Data Report 5 Years (with Option FC5)
MPX2-25 R3 Standard Warranty Extended to 3 Years. Covers parts, labor and 2 day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free a single call starts the process
MPX2-25 R5 Standard Warranty Extended to 5 Years. Covers parts, labor and 2 day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free a single call starts the process

MPS Model Service Options

Option Description
MPS FC3 Calibration service 3 years. Includes calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage.
MPS FC5 Calibration service 5 years. Includes calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage.
MPS FD3 Calibration Data Report 3 Years (requires purchase of FC3)
MPS FD5 Calibration Data Report 5 Years (requires purchase of FC5)
MPS R3 Standard Warranty Extended to 3 Years. Covers parts, labor and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free -a single call starts the process
MPS R5 Standard Warranty Extended to 5 Years. Covers parts, labor and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free -a single call starts the process

MPD Model Service Options

Option Description
MPD FC3 Calibration service 3 years. Includes calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage.
MPD FC5 Calibration service 5 years. Includes calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage.
MPD FD3 Calibration Data Report 3 Years (requires purchase of FC3)
MPD FD5 Calibration Data Report 5 Years (requires purchase of FC5)
MPD R3 Standard Warranty Extended to 3 Years. Covers parts, labor and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free -a single call starts the process
MPD R5 Standard Warranty Extended to 5 Years. Covers parts, labor and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free -a single call starts the process

Post Purchase Upgrade Options

MPI2-25 Model

Option Description
MPI2-25 UP PHY Add SDI Physical Layer Measurement Package (incl. automated measurement of 12G/6G/3G/HD/SDI Eye pattern parameters and jitter parameters; jitter waveform display). MP2 FMT 4K license required for 12G/6G SDI support

MPX2-25 Model

Option Description
MPX2-25 UP PHY Add SDI Physical Layer Measurement Package (incl. automated measurement of 12G/6G/3G/HD/SDI Eye pattern parameters and jitter parameters; jitter waveform display). MP2 FMT 4K license required for 12G/6G SDI support
Back to top
