Optimize Quality, Ensure Integrity

Optimize Quality, Ensure Integrity

The 7200 Series waveform monitor and rasterizer is the go-to tool for mobile and studio production, post production, and facility operations.

It is as valuable in camera setup, as it is for color grading and correction, and overall quality control of content generated in HD with HDR. Available in 3RU half-rack with built-in display or 1RU rasterizer with external display, it optimizes quality, and ensures signal integrity and regulatory compliance.

Upgrades. When Needed & Where Needed

The 7200 Series waveform monitor and rasterizer can acquire extra functionality through software-only field upgrade options. This augments the installed HD/SD-SDI capability to provide analysis of High Dynamic Range (HDR). This easy software-only upgrade path obviates purchasing new equipment when transitioning from HD SDR workflows to HD HDR workflows.

Highlights

  • HDR support: Requires Option PROD

Troubleshoot with a Single Tool, Anywhere in The Workflow

Analyze video, audio, and ancillary data content originated in various formats and standards. This versatility aids troubleshooting of any content and signal quality issue, wherever it occurs in the workflow.

Highlights

  • Video: 3G/HD/SD-SDI with High Dynamic Range (HDR)
  • Audio: Analog, AES/EBU, Dolby E, Dolby Digital, Dolby Digital Plus

Performance You Need to Go Above & Beyond

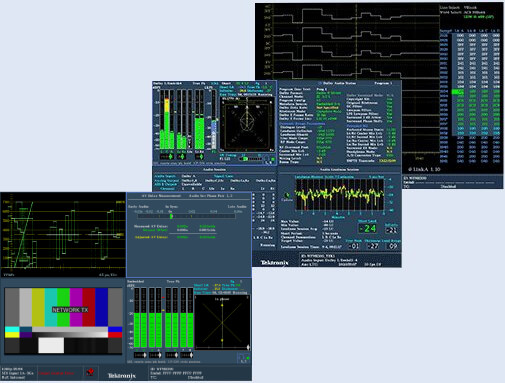

The 7200 Series waveform monitor and rasterizer offers optional physical layer analysis with eye pattern and jitter measurement. Difficult to quantify cable length measurements, in-depth digital data analysis, audio loudness, and audio/video delay measurements are all possible with this instrument.

Highlights

  • Audio loudness monitoring as per ITU-R BS. 1770-3
  • Most comprehensive ANC data monitoring
  • Physical layer signal integrity analyzer

Models

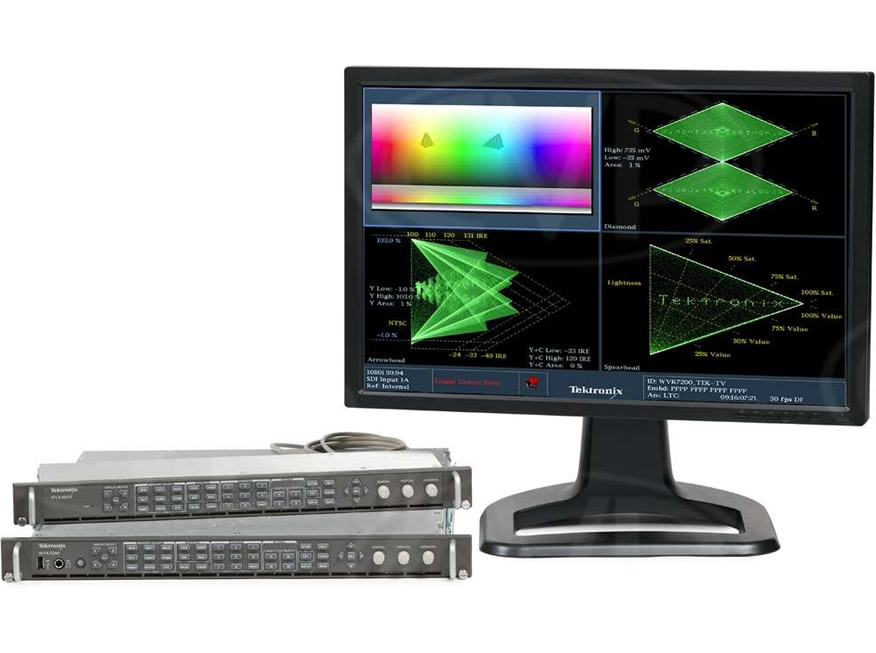

WVR7200

WFM7200

Form Factor

Full Rack x 1RU x 19.63", External Display 1/2 Rack x 3RU x 18.25", Integrated Display

Video Formats

HD, SD, 3G (Option), NTSC/PAL (Option)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

Waveform & Vector, Loudness Analysis, Closed Caption, Subtitles, ANC Data (Option), Gamut, Physical Layer (Option)

Special Features

Most Versatile, Wide range of Video, Wide range of Audio
Configure and Quote Configure and Quote

WVR7200

Form Factor

Full Rack x 1RU x 19.63", External Display

Video Formats

HD, SD, 3G (Option), NTSC/PAL (Option)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

Waveform & Vector, Loudness Analysis, Closed Caption, Subtitles, ANC Data (Option), Gamut, Physical Layer (Option)

Special Features

Most Versatile, Wide range of Video, Wide range of Audio
Configure and Quote

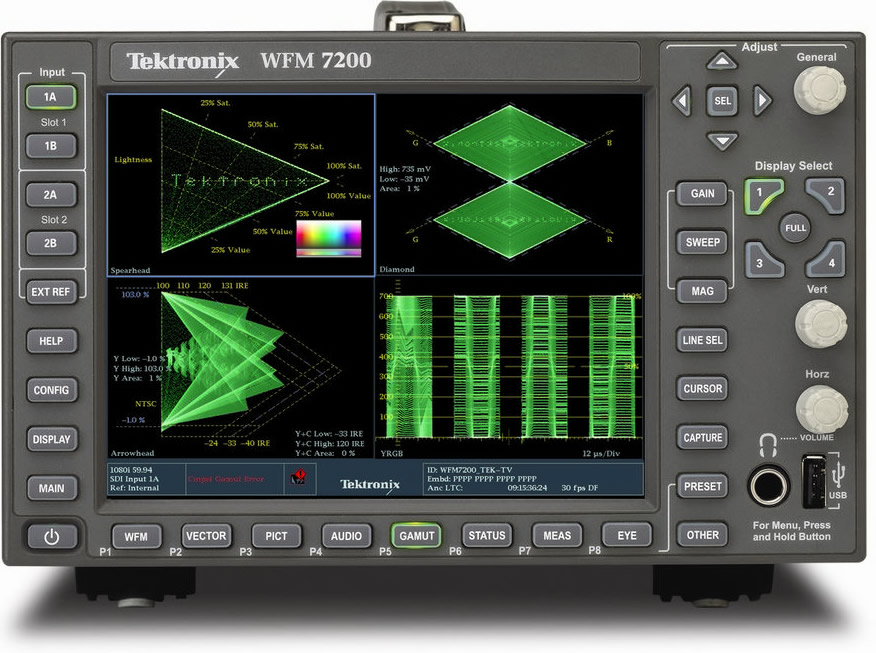

WFM7200

Form Factor

1/2 Rack x 3RU x 18.25", Integrated Display

Video Formats

HD, SD, 3G (Option), NTSC/PAL (Option)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

Waveform & Vector, Loudness Analysis, Closed Caption, Subtitles, ANC Data (Option), Gamut, Physical Layer (Option)

Special Features

Most Versatile, Wide range of Video, Wide range of Audio
Configure and Quote

Applications

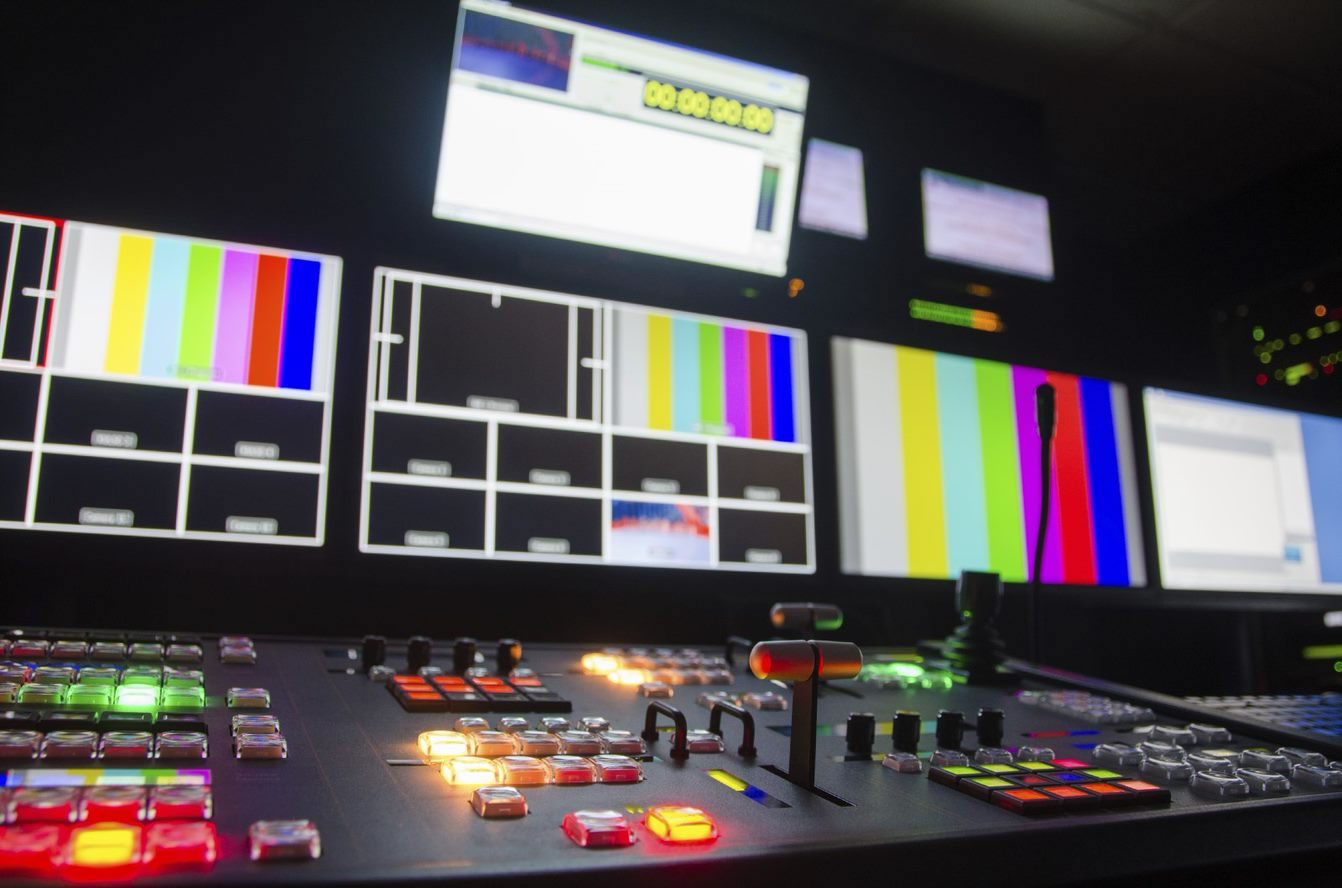

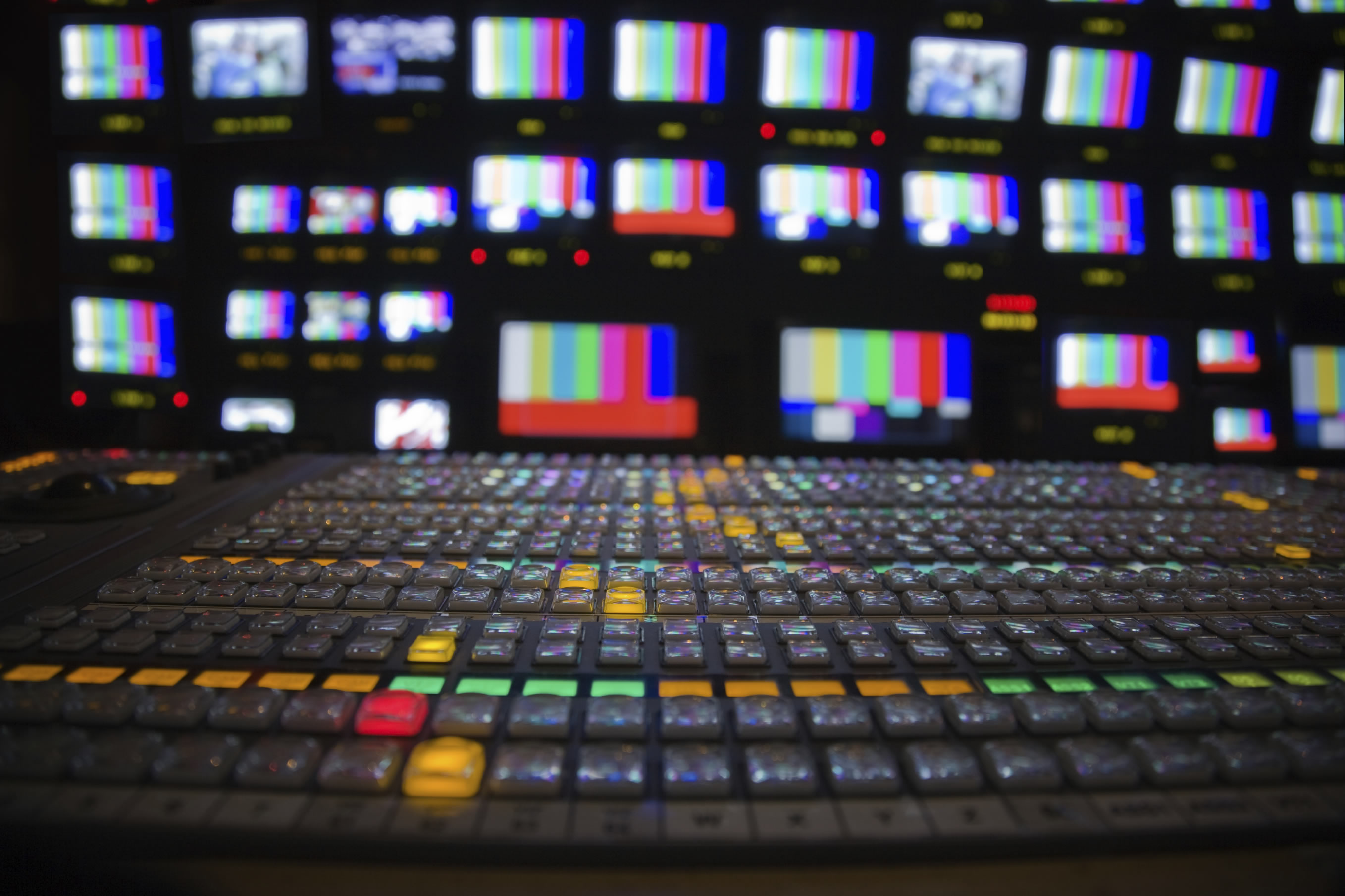

Mobile & Studio Production

Correct setup, alignment, and matching of cameras before a live event is the key to the stunning images necessary for a highly realistic viewing experience. The WFM/WVR7200 series is a versatile device to add valuable insight in a variety of applications, from local studio productions to global live sporting events.

Highlights

  • Optional High Dynamic Range (HDR) measurement including Hybrid Log Gamma (HLG) & SMPTE ST 2084 PQ
  • Wide Color Gamut (WCG) support per ITU-R BT.2020

Post Production

The WFM/WVR7200 series offers a set of tools for editors and colorists to easily and reliably adjust color fidelity while maintaining the video signal within acceptable gamut.

Highlights

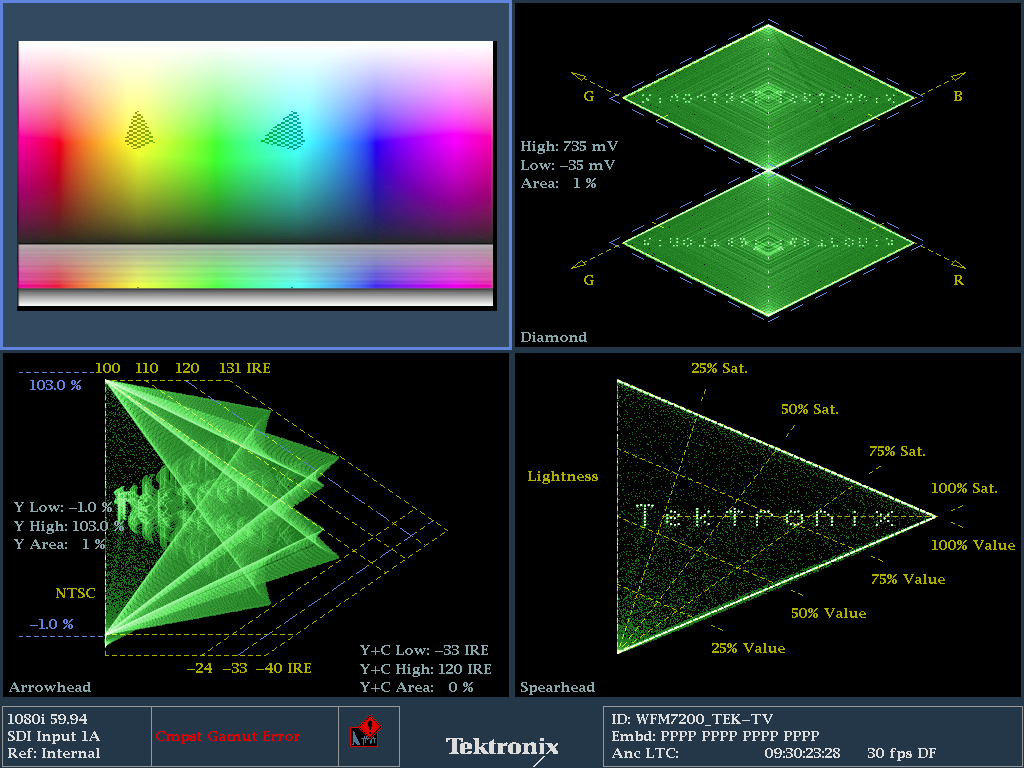

  • Tektronix patented Displays: Diamond, Spear head, and Lightning
  • Optional High Dynamic Range (HDR) measurements including Hybrid Log Gamma (HLG) and SMPTE ST 2084 PQ
  • Wide Color Gamut (WCG) support per ITU-R BT.2020
  • Most comprehensive ANC data and audio loudness monitoring for content QC

Facility Operations

The WFM/WVR7200 series eases the burden of managing a hybrid environment while transitioning from Standard Dynamic Range (SDR) to High Dynamic Range (HDR). The multi-format, multi-standard content monitoring and analysis, provide trusted results throughout the often tricky transition period.

Highlights

  • Optional High Dynamic Range (HDR) measurements including Hybrid Log Gamma (HLG) and SMPTE ST 2084 PQ
  • Wide Color Gamut (WCG) support per ITU-R BT.2020
  • Most comprehensive ANC data, audio loudness and physical layer measurements

Key Specifications

Available Options

Available Options

  • SD, HD and Dual Link
  • Closed Captioning Analysis
  • Audio Loudness Monitoring
  • Patented Gamut Displays
  • 3G Formats (3G)
  • Composite Analog Video: NTSC/PAL (CPS)
  • ANC Data Analysis (DAT)
  • Analog Audio (AD)
  • Embedded Audio (AD)
  • 4 Inputs for Camera Balancing (SIM, 2SDI)
  • Advanced Gamut Displays - Spearhead & Luma Qualified Vector (PROD)
  • 3D Video Content Monitoring (3SD)
  • Dolby Digital Audio Monitoring (AC-3)/E/DD+ (DPE)
  • Audio-Video Delay (AVD)
  • Eye Diagrams & Cable Parameter Measurements (PHY3)
  • Jitter Waveform & Automated Eye Measurements (PHY3)
  • Basic Test Signal Generation (GEN)

Key Specifications

  • SD, HD and Dual Link
  • Closed Captioning Analysis
  • Audio Loudness Monitoring
  • Patented Gamut Displays

Available Options

  • 3G Formats (3G)
  • Composite Analog Video: NTSC/PAL (CPS)
  • ANC Data Analysis (DAT)
  • Analog Audio (AD)
  • Embedded Audio (AD)
  • 4 Inputs for Camera Balancing (SIM, 2SDI)
  • Advanced Gamut Displays - Spearhead & Luma Qualified Vector (PROD)

Available Options

  • 3D Video Content Monitoring (3SD)
  • Dolby Digital Audio Monitoring (AC-3)/E/DD+ (DPE)
  • Audio-Video Delay (AVD)
  • Eye Diagrams & Cable Parameter Measurements (PHY3)
  • Jitter Waveform & Automated Eye Measurements (PHY3)
  • Basic Test Signal Generation (GEN)
