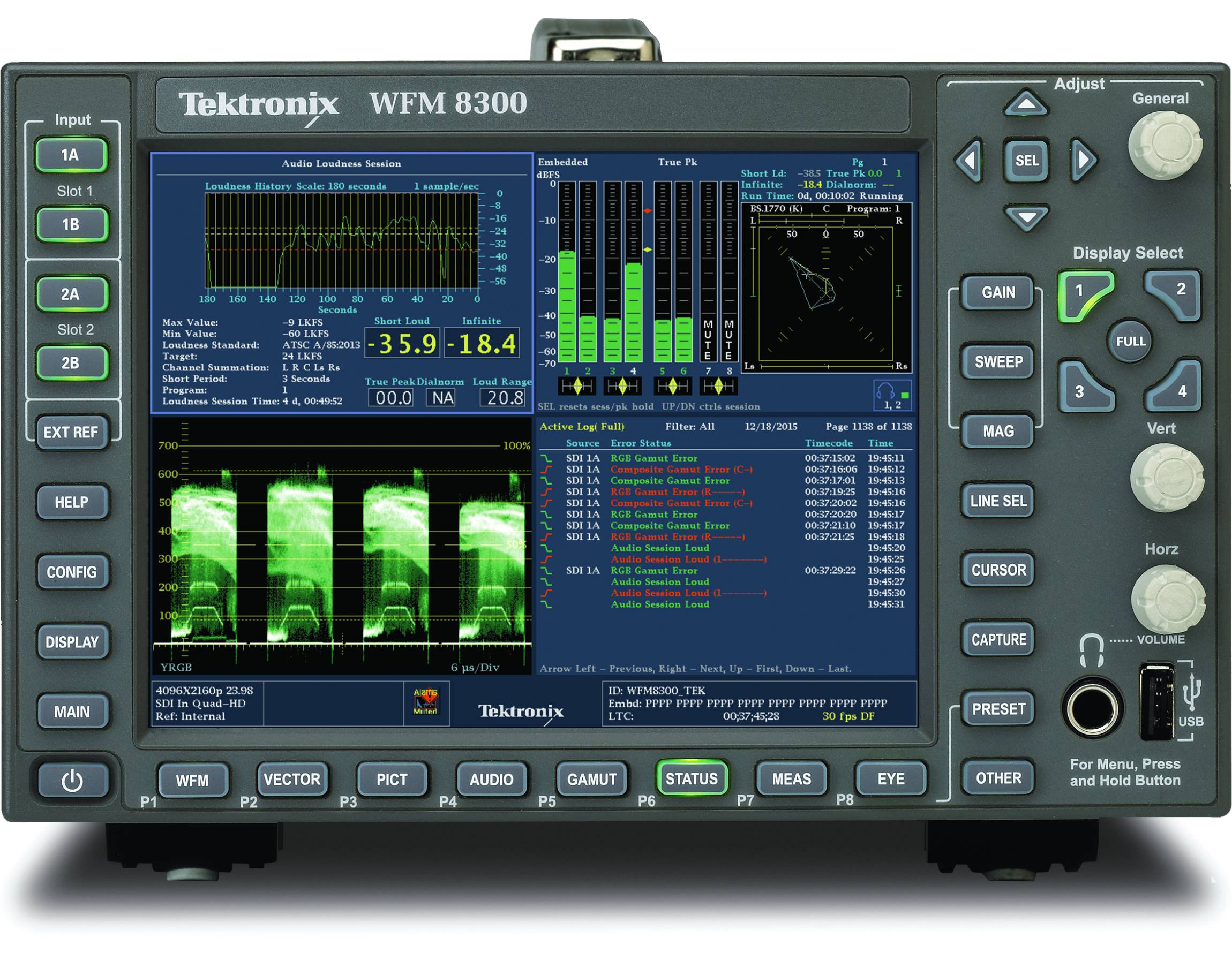

The 8000 Series waveform monitor and rasterizer is the go-to tool for mobile and studio production, post production, and facility operations.

It is as valuable in camera setup, as it is for color grading and correction, and overall quality control of content generated in HD or 4K/UHD with HDR. Available in 3RU half-rack with built-in display or 1RU rasterizer with external display, it optimizes quality, and ensures signal integrity and regulatory compliance.

Upgrades. When Needed & Where Needed

The 8000 Series waveform monitor and rasterizer can acquire extra functionality through software-only field upgrade options. This augments the installed HD/SD-SDI capability to provide analysis of 4K/UHD, High Dynamic Range (HDR) and Wide Color Gamut (WCG). This easy software-only upgrade path obviates purchasing new equipment when transitioning from HD workflows to 4K/UHD workflows.

Highlights

  • 4K/UHD support: Requires Options 4K, 3G, and 2SDI
  • HDR support: Requires Option PROD

Troubleshoot with a Single Tool, Anywhere in the Workflow

Analyze video, audio and ancillary data content originated in various formats and standards. This versatility aids troubleshooting of any content and signal quality issue, wherever it occurs in the workflow.

Highlights

  • Video: 3G/HD/SD-SDI, 4K/UHD with High Dynamic Range (HDR)
  • Audio: Analog, AES/EBU, Dolby E, Dolby Digital, Dolby Digital Plus

Performance You Need to Go Above & Beyond

The 8000 Series waveform monitor and rasterizer offers optional physical layer analysis with eye pattern and jitter measurement. Difficult to quantify cable length measurements, in-depth digital data analysis, audio loudness and audio/video delay measurements are all possible with this instrument.

Highlights

  • Audio loudness monitoring as per ITU-R BS. 1770-3
  • Most comprehensive ANC data monitoring
  • Physical layer signal integrity analyzer

Models

WVR8200

WFM8200

WVR8300

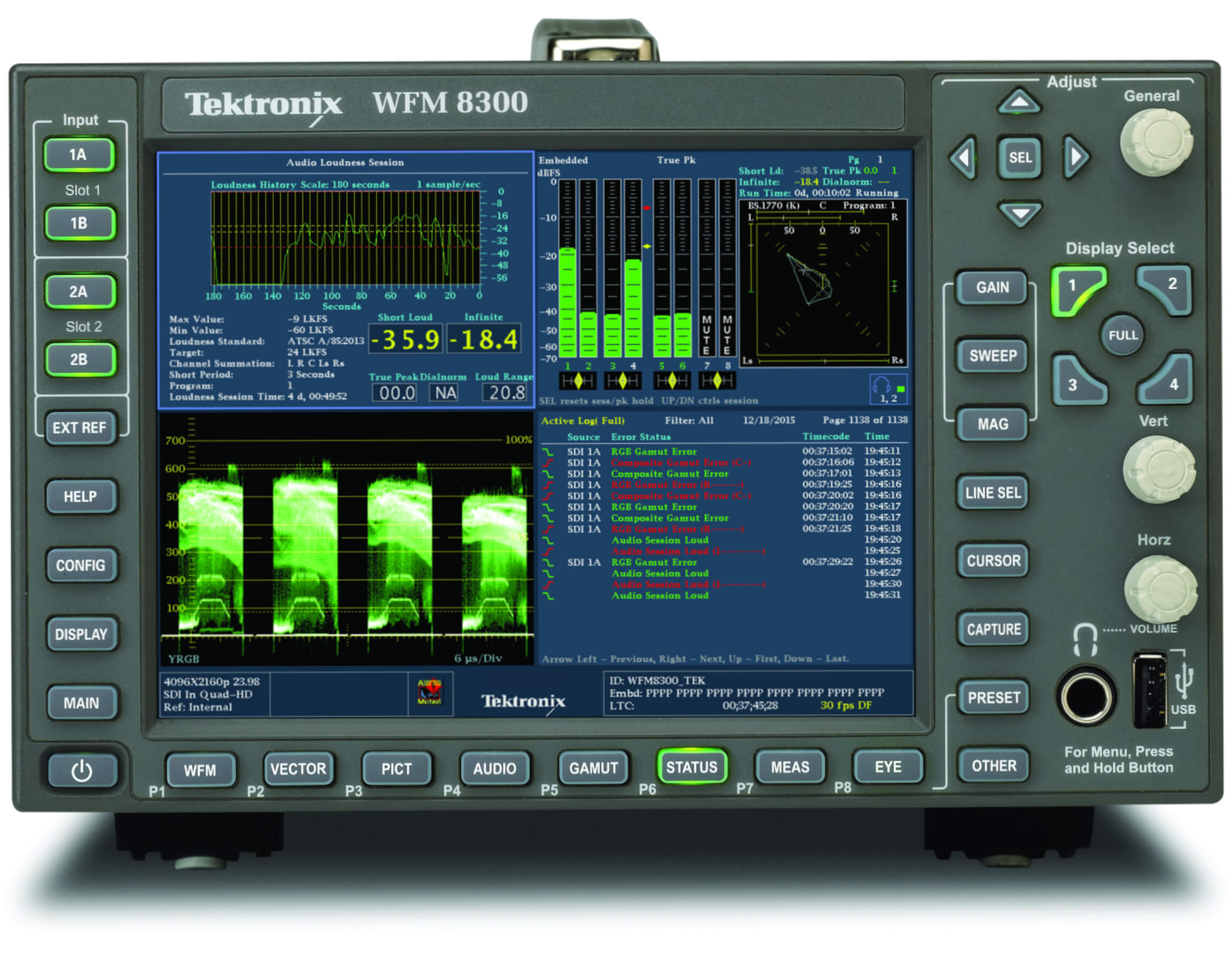

WFM8300

Form Factor

1 RU Full Depth, Full Width 1/2 Rack x 3RU x 18.25", Integrated Display 1 RU Full Depth, Full Width 1/2 Rack x 3 RU x 18.25", Integrated Display

Video Formats

SD, HD, Dual Link, 3G (Option 3G), 4K/UHDTV1 (Option 3G, 2SDI, 4K), NTSC/PAL (Option CPS)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

Waveform & Vector, Loudness Analysis, Closed Caption, Subtitles, ANC Data (Option), Gamut Physical Layer (Option), Quad Link timing (Option) (Option PHY), Physical Layer

Special Features

Highest Performance 4K as an option Data Analysis, SIM, Audio Video, Delay Measurement

Generator Options

Basic Test Signal (Option GEN) Basic Test Signal (Option PHY)
Configure and Quote Configure and Quote Configure and Quote Configure and Quote

WVR8200

Form Factor

1 RU Full Depth, Full Width

Video Formats

SD, HD, Dual Link, 3G (Option 3G), 4K/UHDTV1 (Option 3G, 2SDI, 4K), NTSC/PAL (Option CPS)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

Waveform & Vector, Loudness Analysis, Closed Caption, Subtitles, ANC Data (Option), Gamut Physical Layer (Option), Quad Link timing (Option)

Special Features

Highest Performance 4K as an option

Generator Options

Basic Test Signal (Option GEN)
Configure and Quote

WFM8200

Form Factor

1/2 Rack x 3RU x 18.25", Integrated Display1/2 Rack x 3RU x 18.25", Integrated Display

Video Formats

SD, HD, Dual Link, 3G (Option 3G), 4K/UHDTV1 (Option 3G, 2SDI, 4K), NTSC/PAL (Option CPS)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

Waveform & Vector, Loudness Analysis, Closed Caption, Subtitles, ANC Data (Option), Gamut Physical Layer (Option), Quad Link timing (Option)

Special Features

Highest Performance 4K as an option

Generator Options

Basic Test Signal (Option GEN)
Configure and Quote

WVR8300

Form Factor

1 RU Full Depth, Full Width

Video Formats

SD, HD, Dual Link, 3G (Option 3G), 4K/UHDTV1 (Option 3G, 2SDI, 4K), NTSC/PAL (Option CPS)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

(Option PHY), Physical Layer

Special Features

Data Analysis, SIM, Audio Video, Delay Measurement

Generator Options

Basic Test Signal (Option PHY)
Configure and Quote

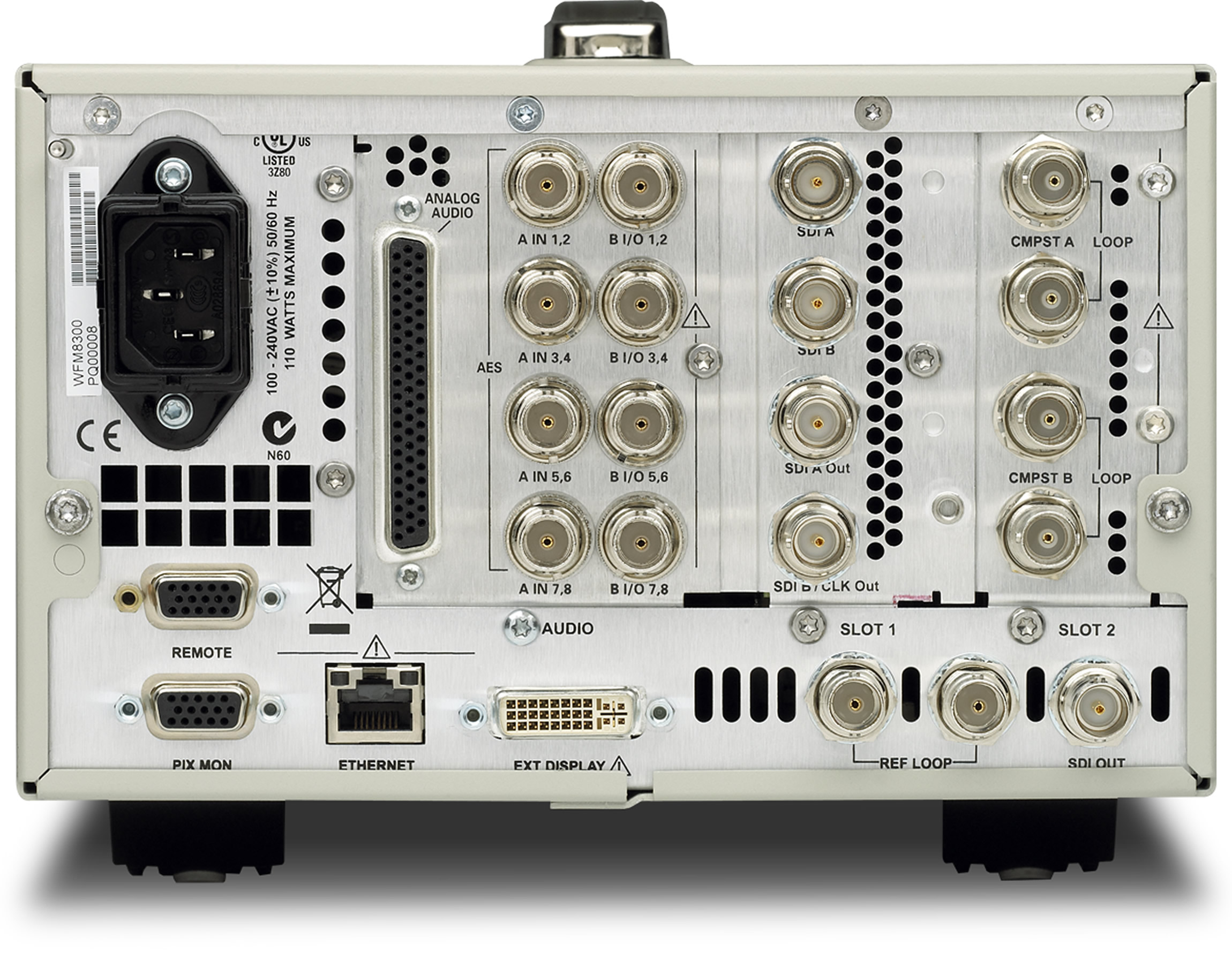

WFM8300

Form Factor

1/2 Rack x 3 RU x 18.25", Integrated Display

Video Formats

SD, HD, Dual Link, 3G (Option 3G), 4K/UHDTV1 (Option 3G, 2SDI, 4K), NTSC/PAL (Option CPS)

Audio Formats

Embedded (Option), AES/EBU (Option), Analog (Option), Dolby Decode (Option)

Measurements

Physical Layer, (Option PHY)

Special Features

Data Analysis, SIM, Audio Video, Delay Measurement

Generator Options

Basic Test Signal (Option PHY)
Configure and Quote

Applications

Mobile & Studio Production

Correct setup, alignment and matching of cameras before a live event is the key to the stunning images necessary for a highly realistic viewing experience. The WFM/WVR8000 series is a versatile device to add valuable insight in a variety of applications, from local studio productions to global live sporting events; from familiar HD workflows to emerging 4K HDR workflows.

Highlights

  • HD/SD-SDI analysis with field upgrade option to add 4K/UHD

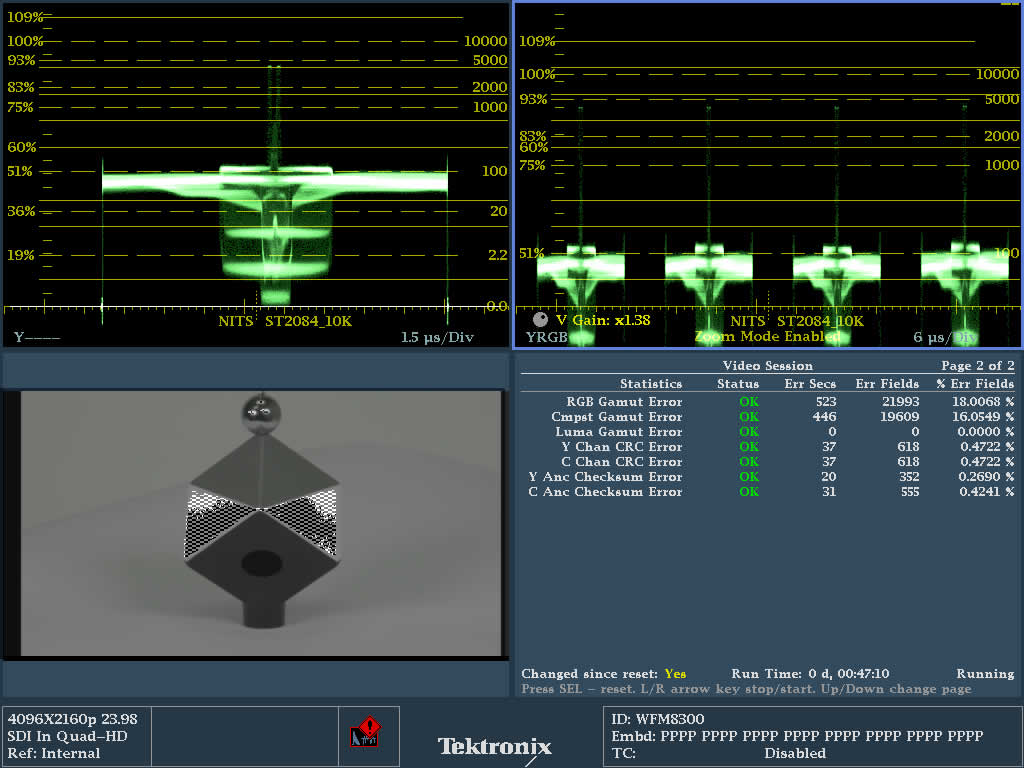

  • Optional High Dynamic Range (HDR) measurement including Hybrid Log Gamma (HLG) & SMPTE ST 2084 PQ
  • Wide Color Gamut (WCG) support per ITU-R BT.2020

Post Production

The easy to understand displays on the WFM/WVR8000 series provide insight for editors and colorists to adjust the color fidelity while retaining confidence that the video signal remains within acceptable levels of gamut.

Highlights

  • Optional 4K/UHD format support (square division & 2-sample interleave formats)
  • Optional High Dynamic Range (HDR) measurements including Hybrid Log Gamma (HLG) & SMPTE ST 2084 PQ
  • Wide Color Gamut (WCG) support per ITU-R BT.2020
  • Most comprehensive ANC data and audio loudness monitoring for content QC

Facility Operations

The WFM/WVR8000 series eases the burden of managing a hybrid environment while transitioning from HD to 4K/UHD or from Standard Dynamic Range (SDR) to High Dynamic Range (HDR). The multi-format, multi-standard content monitoring and analysis, provide trusted results throughout the often tricky transition period.

Highlights

  • Optional 4K/UHD format support (square division & 2-sample interleave formats)
  • Optional High Dynamic Range (HDR) measurements including Hybrid Log Gamma (HLG) & SMPTE ST 2084 PQ
  • Wide Color Gamut (WCG) support per ITU-R BT.2020
  • Most comprehensive ANC data, audio loudness & physical layer measurements
