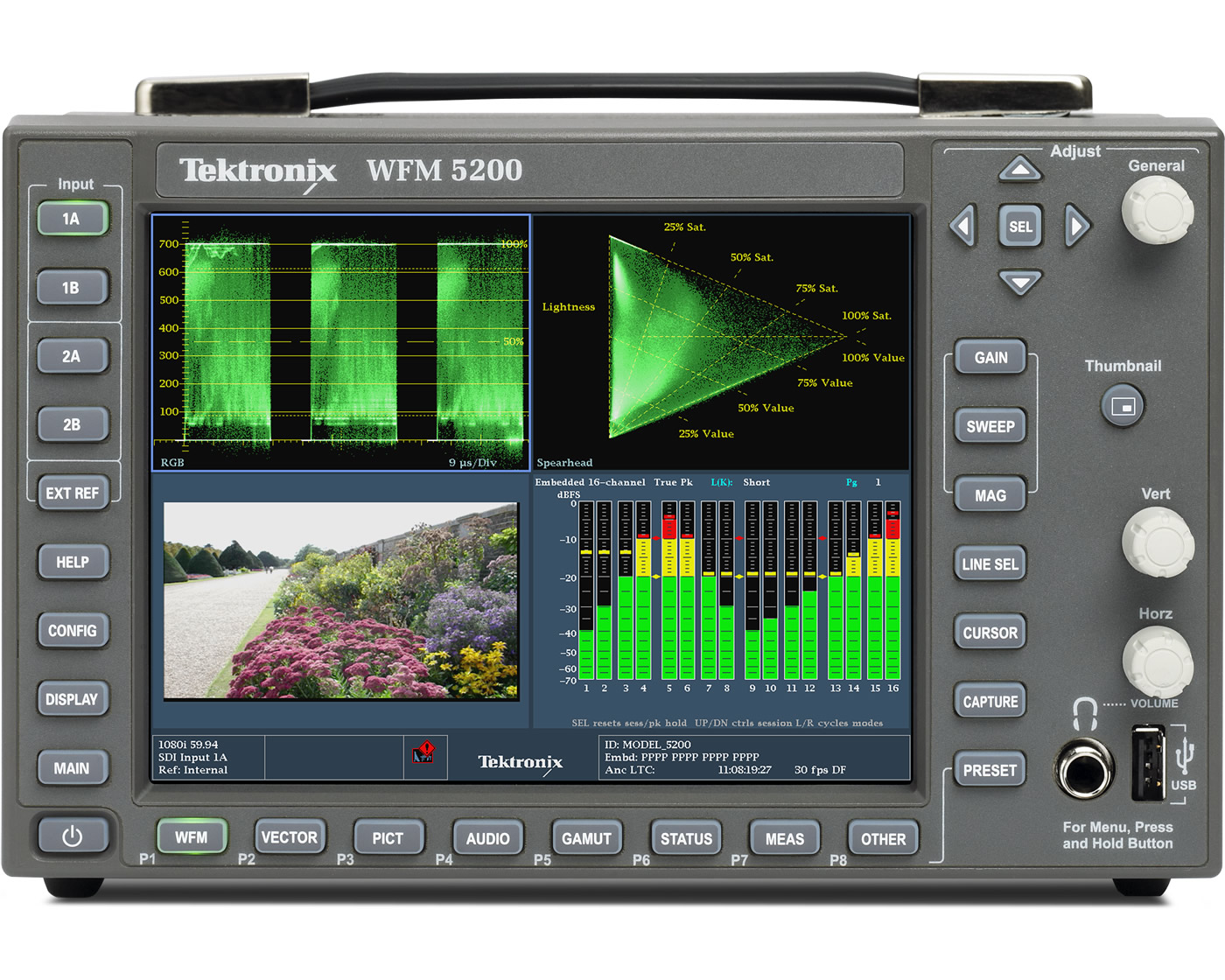

The WFM/WVR5000 series is the industry standard when monitoring basic video and audio content, at an affordable price.

Whether in the production or a post-production environment, the 5000 series offers uncompromising quality, HD/SD support, versatility through a range of software options, and the capability to handle 3G-SDI (WFM/WVR5200) and HDMI (WFM/WVR5250).

High Quality Displays for Precise Alignment & Matching of Cameras

The 5000 Series waveform monitors and rasterizers are as much an essential at a local studio as they are at a global sporting event through their unique combination of high quality waveform and vector trace displays. As applicable for luma and chroma camera alignment, as in matching imagery in a multi-camera production, the 5000 series helps to quickly, easily, and precisely perform complex camera setups in a high pressure environment.

Highlights

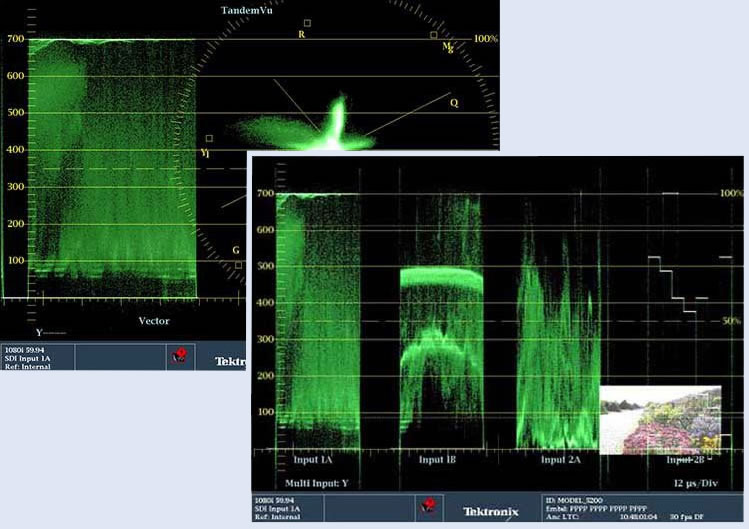

  • TandemVu (waveform + vector) for precise camera alignment
  • Multi-camera balancing made simple with the Multiple Input Mode

Patented Displays Ensure Color Gamut Compliance

The Tektronix suite of patented gamut displays on the 5000 series, make it easy to adjust and correct the color fidelity of the video signal while staying within acceptable color limits. The goal, given the dictates of delivery to a variety of media devices and screens, is consistent delivery without ever sacrificing the artistic intent of the original content.

Highlights

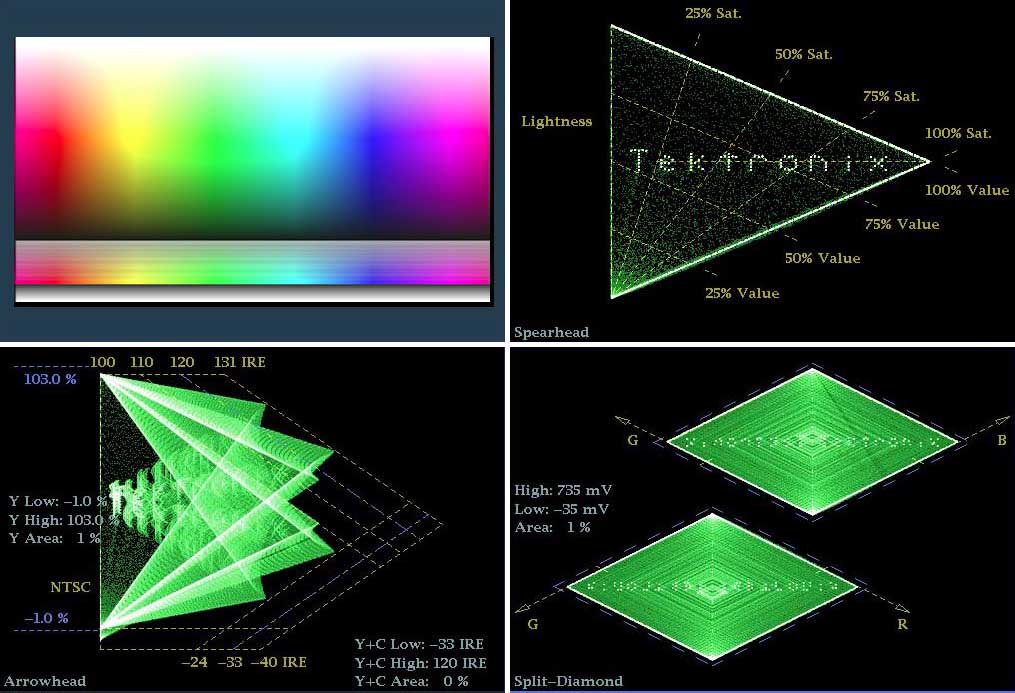

  • Patented Diamond, Spearhead, and Arrowhead Gamut Displays
  • Less than 3” in depth, the dual screen is ideal where space is at a premium and screen monitoring is critical
  • Luma Qualified Vector Display for precise color adjustment

Comprehensive Content Quality Control (QC)

The 5000 Series waveform monitors and rasterizers offer optional audio loudness monitoring and measurements as well as in-depth monitoring and analysis of digital data (including ANC data). A single tool to handle all quality control (QC) of signals from HD/SD-SDI to 3G-SDI, provides the assurance of superb video and audio quality as well as regulatory compliance.

Highlights

  • Audio Loudness Monitoring (ITU-R BS.1770-3, EBU R 128, ATSC A/85)

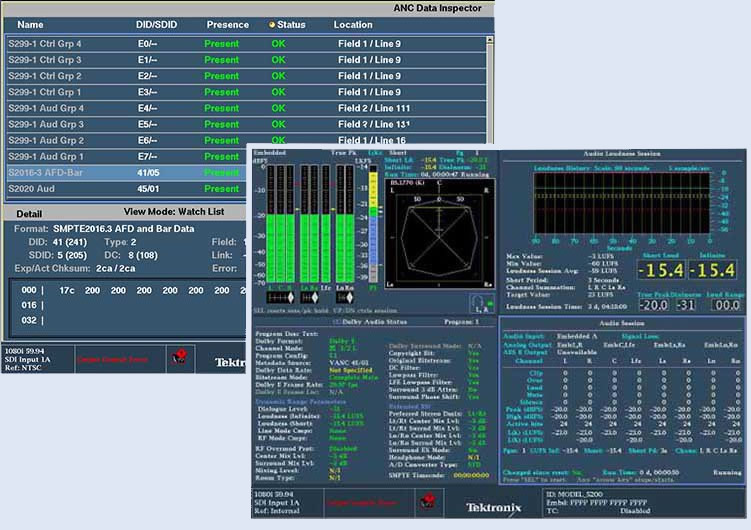

  • ANC Data Inspector for in-depth ANC Data Monitoring
  • Closed Caption and Subtitle / Teletext Decode

Models

WVR5250

WVR5000

WVR5200

WFM5250

WFM5000

WFM5200

Form Factor

1/2 Rack x 1RU x 5.5" 1/2 Rack x 1RU x 18" 1/2 Rack x 1RU x 5.5" 1/2 Rack x 3RU x 5.5" 1/2 Rack x 3RU x 5.5" 1/2 Rack x 3RU x 5.5"

Video Formats

3G, HD, SD HDMI HD, SD 3G, HD, SD 3G, HD, SD HDMI HD, SD 3G, HD, SD

Audio Formats

Embedded Embedded, AES/EBU Embedded Embedded Embedded, AES/EBU Embedded

Measurements

Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Waveform & Vector, Audio Bars Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Waveform & Vector, Audio Bars Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut

Special Features

Basic HD & SD Monitoring Basic HD & SD Monitoring Basic HD & SD Monitoring Basic HD & SD Monitoring Basic HD & SD Monitoring Basic HD & SD Monitoring
Configure and Quote Configure and Quote Configure and Quote Configure and Quote Configure and Quote Configure and Quote

WVR5250

Form Factor

1/2 Rack x 1RU x 5.5"

Video Formats

3G, HD, SD HDMI

Audio Formats

Embedded

Measurements

Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut

Special Features

Basic HD & SD Monitoring
Configure and Quote

WVR5000

Form Factor

1/2 Rack x 1RU x 18"

Video Formats

HD, SD

Audio Formats

Embedded, AES/EBU

Measurements

Waveform & Vector, Audio Bars

Special Features

Basic HD & SD Monitoring
Configure and Quote

WVR5200

Form Factor

1/2 Rack x 1RU x 5.5"

Video Formats

3G, HD, SD

Audio Formats

Embedded

Measurements

Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut

Special Features

Basic HD & SD Monitoring
Configure and Quote

WFM5250

Form Factor

1/2 Rack x 3RU x 5.5"

Video Formats

3G, HD, SD HDMI

Audio Formats

Embedded

Measurements

Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut

Special Features

Basic HD & SD Monitoring
Configure and Quote

WFM5000

Form Factor

1/2 Rack x 3RU x 5.5"

Video Formats

HD, SD

Audio Formats

Embedded, AES/EBU

Measurements

Waveform & Vector, Audio Bars

Special Features

Basic HD & SD Monitoring
Configure and Quote

WFM5200

Form Factor

1/2 Rack x 3RU x 5.5"

Video Formats

3G, HD, SD

Audio Formats

Embedded

Measurements

Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut

Special Features

Basic HD & SD Monitoring
Configure and Quote

Applications

Mobile & Studio Production

The key to stunning images and a highly realistic viewing experience is proper setup, alignment, and matching of cameras before the event. The WFM/WVR5000 series is an equally valuable tool for local studio productions or global live sporting events whether delivered via HD/SD-SDI or 3G-SDI workflows.

Highlights

  • HD/SD-SDI format support with field installable option to add 3G-SDI support
  • TandemVu (waveform + vector) for precise camera alignment
  • Multiple Input Mode for multi-camera matching

Post Production

The easy to understand displays on the WFM/WVR8000 series provide insight for editors and colorists to adjust the color fidelity while retaining confidence that the video signal remains within acceptable levels of gamut.

Highlights

  • Patented Diamond, Spearhead, and Arrowhead Gamut Displays
  • Luma Qualified Vector Display for precise color adjustment
  • Most comprehensive ANC data support and audio loudness monitoring for QC of content
  • Stereoscopic 3D video displays for 3D featured film content
